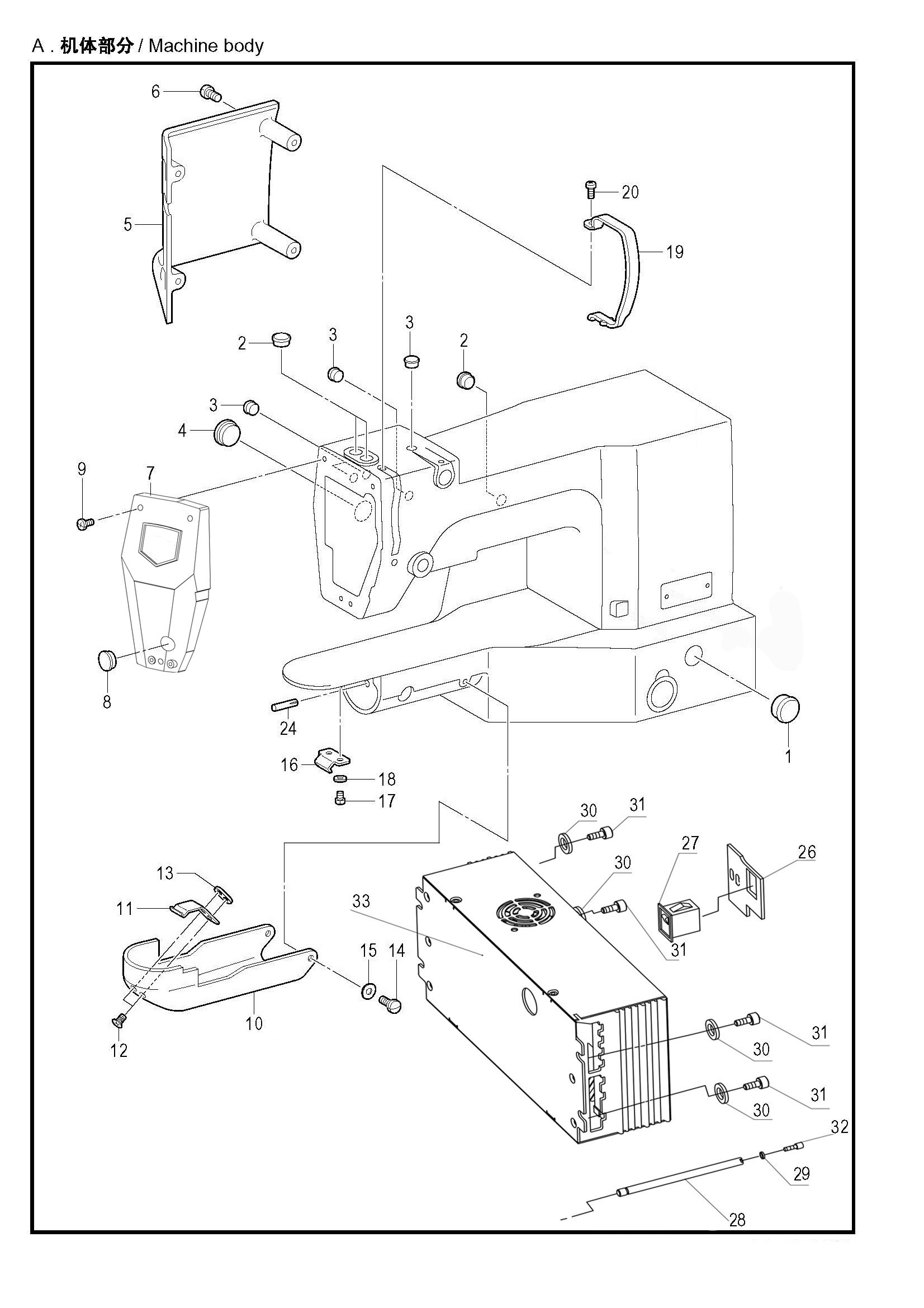

01 |
PF9820A61 |
油蓋 OIL CAP |
1 |
|
|
02 |
PF1310A04 |
橡皮塞13.5 RUBBER CAP, 13.5 |
3 |
|
|
03 |
PF1310A05 |
橡皮塞10.5 RUBBER CAP, 10.5 |
4 |
|
|
04 |
PF430GA04 |
油蓋 OIL CAP |
1 |
|
|
05 |
PF430GA05 |
側面蓋板 FRAME SIDE COVER |
1 |
|
|
06 |
PF8420M-D30846 |
螺釘M6X10 SCREW, PAN M6X10 |
4 |
|
|
07 |
PF430GA07 |
主面板 FACE PLATE |
1 |
|
|
08 |
PF1310A11 |
橡皮塞15.5 RUBBER CAP, 15.5 |
1 |
|
|
09 |
PF8420M-D31415 |
螺釘M5X10 SCREW, PAN M5X10 |
3 |
|
|
10 |
PF430GA10 |
大旋梭蓋 SHUTTLE RACE COVER |
1 |
|
|
11 |
PF430GA11 |
大旋梭蓋鉤D SHUTTLE RACE COVER HOOK D |
1 |
|
|
12 |
PF1310A16 |
螺釘M3X5 SCREW, FLAT M3X5 |
2 |
|
|
13 |
PF1310A17 |
板螺母 NUT PLATE |
1 |
|
|
14 |
PF430GA14 |
段螺釘8-2 SHOULDER SCREW,8-2 |
2 |
|
|
15 |
PF430GA15 |
彈簧墊圈 WASHER, WAVE SPRING |
2 |
|
|
16 |
PF430GA16 |
大旋梭蓋鉤U SHUTTLE RACE COVER HOOK U |
1 |
|
|
17 |
PF1310C248 |
螺釘M3X4 SCREW, PAN M3X4 |
2 |
|
|
18 |
PF1310J65 |
平墊圈M3 WASHER, PLAIN M 3 |
2 |
|
|
19 |
PF1310A23 |
挑線桿防護罩 THREAD TAKE-UP COVER |
1 |
|
|
20 |
PF1310A24 |
螺釘M4X10 SCREW, PAN M4X10 <Except for China> |
1 |
|
|
24 |
PF1310A02 |
開口銷 DOWEL PIN |
1 |
|
|
26 |
TA2901 |
開關安裝板 SWITCH PLATE |
1 |
|
|
27 |
PF430GR36SF3010398 |
大豪一體機開關 DAHAO SWITCH |
1 |
|
|
28 |
TA2902 |
后罩殼支柱螺釘 BACK COVER SUPPORT SCREW |
1 |
|
|
29 |
PF1310J65 |
平墊圈 M3 WASHER ,PLAIN M3 |
1 |
|
|
30 |
PF7810749 |
平墊圈 WASHER |
4 |
|
|
31 |
PF1310C252 |
螺栓M4X10 BOLT, SOCKET M4X10 |
4 |
|
|
32 |
PF1790S0907 |
螺釘 SCREW |
1 |
|
|
33-1 |
PF430GR37 |
電控大豪一體機(1000線電機按鍵屏幕)單踏板 |
1 |
|
|
33-2 |
PF436GW23101 |
436G電控大豪一體機（1000線液晶屏電控） |
1 |
