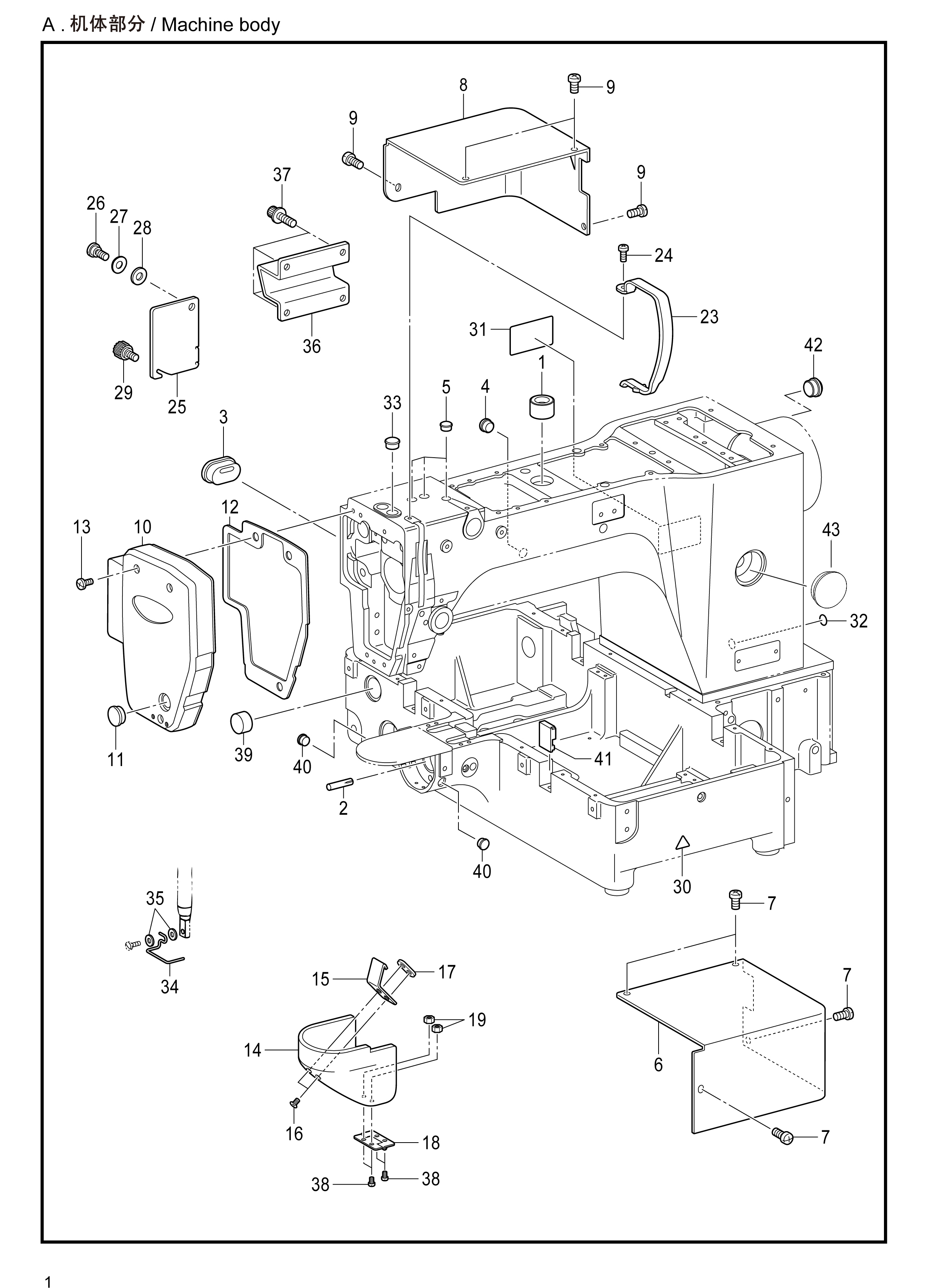

01 |
PF1310A01 |
軸套U BUSHING U |
1 |
1 |
|
|
02 |
PF1310A02 |
開口銷 DOWEL PIN |
1 |
1 |
|
|
03 |
PF1310A03 |
橡皮塞 20-15 RUBBER CAP 20-15 |
1 |
1 |
|
|
04 |
PF1310A04 |
橡皮塞 13.5 RUBBER CAP 13.5 |
1 |
1 |
|
|
05 |
PF1310A05 |
橡皮塞 10.5 RUBBER CAP 10.5 |
3 |
3 |
|
|
06 |
PF1310A06 |
馬達蓋 R MOTOR COVER R |
1 |
1 |
|
|
07 |
PF8420M-D30846 |
螺釘 M6×10 SCREW PAN M6×10 |
4 |
4 |
|
|
08 |
PF1310A08 |
馬達蓋 L MOTOR COVER L |
1 |
1 |
|
|
09 |
PF8420M-D30846 |
螺釘 M6×10 SCREW PAN M6×10 |
4 |
4 |
|
|
10 |
PF1310A10 |
面板 FACE PLATE |
1 |
1 |
|
|
11 |
PF1310A11 |
橡皮塞 15.5 RUBBER CAP 15.5 |
1 |
1 |
|
|
12 |
PF1310A12 |
面板墊片 F-PLATE PACKING |
1 |
1 |
|
|
13 |
PF8420M-D30846 |
螺釘 M6×10 SCREW PAN M6×10 |
3 |
3 |
|
|
14 |
PF1310A14 |
大旋梭蓋 SHUTTLE RACE COVER |
1 |
1 |
|
|
15 |
PF1310A15 |
大旋梭蓋掛鉤 D SHUTTLE RACE COVER HOOK D |
1 |
1 |
|
|
16 |
PF1310A16 |
螺釘 M3×5 SCREW FLAT M3×5 |
2 |
2 |
|
|
17 |
PF1310A17 |
板螺母 NUT PLATE |
1 |
1 |
|
|
18 |
PF1310A18 |
鉸鏈 HINGE |
1 |
1 |
|
|
19 |
PF1900A0524 |
螺母 M3 NUT M3 |
2 |
2 |
|
|
23 |
PF1310A23 |
挑線桿防護罩 THREAD TAKE-UP COVER |
1 |
1 |
|
|
24 |
PF1310A24 |
螺釘 M4×10 SCREW PAN M4×10 |
1 |
1 |
|
|
25 |
PF1310A25 |
間歇蓋板 STEPPING COVER |
1 |
1 |
|
|
26 |
PF1310A26 |
段螺釘 7-3 SHOULDER SCREW 7-3 |
1 |
1 |
|
|
27 |
PF1310A27 |
彈簧墊圈 SPRING WASHER |
1 |
1 |
|
|
28 |
PF1310A28 |
墊圈 WASHER PLAIN |
1 |
1 |
|
|
29 |
PF1310A29 |
螺釘 M5 SCREW M5 |
1 |
1 |
|
|
30 |
PF1310A30 |
警告標記 MARK INJURY |
1 |
1 |
|
|
31 |
PF1310A31 |
操作注意標簽（中/英） LABEL CAUTION CHN/ENG |
1 |
1 |
|
|
32 |
PF1310A32 |
接地標記 LABEL GROUNDING |
1 |
1 |
|
|
33 |
PF1310A33 |
橡皮塞 13 RUBBER CAP 13 |
1 |
1 |
|
|
34 |
PF1310A34 |
護指器 FINGER GUARD |
1 |
1 |
|
|
35 |
PF1310A35 |
平墊圈 L3.5 WASHER PLAIN L3.5 |
2 |
2 |
|
|
36 |
PF1310A36 |
機頭撐桿 HEAD REST |
1 |
1 |
|
|
37 |
PF1310A37 |
螺栓 M6×14 BOLT SOCKET（S/P WASHER）M6×14 |
4 |
4 |
|
|
38 |
PF1310A38 |
螺釘 M3×5 SCREW PAN M3×5 |
4 |
4 |
|
|
39 |
PF1310A39 |
橡皮塞 26 RUBBER CAP 26 |
1 |
1 |
|
|
40 |
PF1310A40 |
橡皮塞 11.5 RUBBER CAP 11.5 |
2 |
2 |
|
|
41 |
PF1310A41 |
橡皮蓋 RUBBER CAP |
2 |
2 |
|
|
42 |
PF1310A33 |
橡皮塞 13 RUBBER CAP 13 |
1 |
1 |
|
|
43 |
PF1310A43 |
橡皮塞 29 RUBBER CAP 29 |
1 |
1 |
